ACL

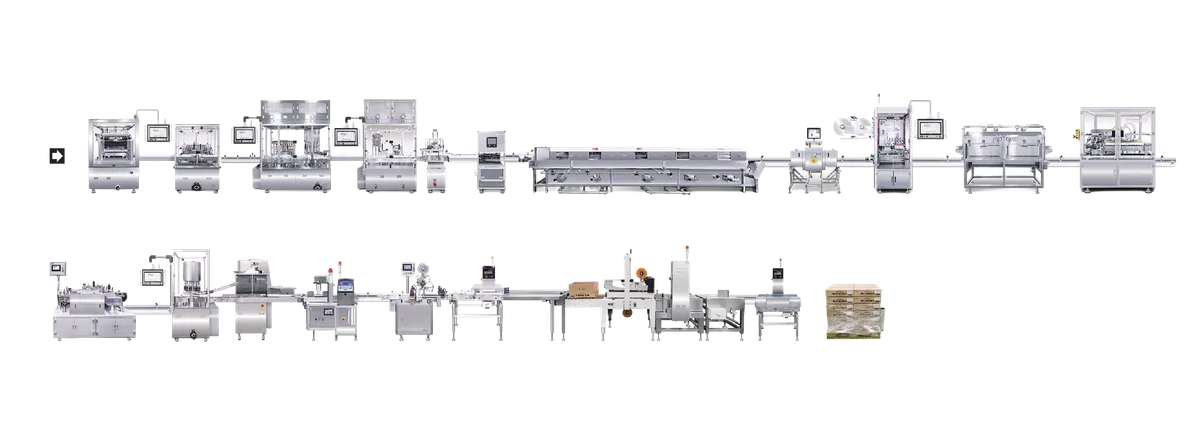

Fully automated line from container unscrambling to case packing
ESU's ACL is an end-to-end solution that integrates every process for vial and bottle products — washing, sterilization, filling, capping, inspection and labelling — into a single line. Proven on the production floors of Korea's leading pharmaceutical companies, it is ESU's flagship line, built for outstanding reliability. Packaging liquid products in vials or bottles, the ACL runs at a high speed of 200 BPM. Seventeen stations operate in tight synchronization, from container unscrambling at the start of the line to final case packing. Automating every step from infeed to logistics packaging without gaps, the ACL is ESU's high-end line optimized for large-scale production.
OUTPUT
200 BPM
STATIONS
17 stages
CONTAINER
Vial / Bottle
PRODUCT
Liquid
PROCESS FLOW
LINE COMPONENTS
VNUS-250
Unscrambler
A high-speed bottle unscrambling system — load bulk bottles into the hopper and they discharge automatically aligned
View Details →
VNWG-200
Auto Washing Machine
An automatic washing system that cleans bottles and vials with purified water and air
View Details →
VLFC-200
Filling & Capping Machine
A high-speed liquid filling and capping system that precisely fills containers and caps them automatically
View Details →
VNSE-200
Vial Sealing Machine
A high-speed sealing system that secures a hermetic seal on liquid-filled vials
View Details →
VNCW-200
Checkweigher
A checkweighing system that automatically inspects product weight and screens out out-of-spec units
View Details →
VNTP-200
Terminal Sterilization System
A terminal sterilization system that sterilizes filled and sealed products to eliminate microbial contamination
View Details →
VNIX-200
X-ray Inspection System
An X-ray inspection system that non-destructively detects metallic and non-metallic foreign matter inside products
View Details →
VNLS-200
Labeler (Sleeve)
A high-speed labeling system that automatically applies cut sleeve labels to bottles
View Details →
VNTS-200
Shrink Tunnel
A label shrink system — sleeve-labeled bottles pass through a high-temperature steam tunnel and shrink automatically
View Details →
VNBW-200
Bottle Drying Machine
A system that removes residual water from bottles
View Details →
VNLA-200
Labeler (Sticker)
A labeling system that automatically applies pressure-sensitive labels to bottles and vials, prints codes, and rejects defects
View Details →
VNCA-220
Overcap Assembly Machine
A high-speed system that seats an additional overcap on top of products that have already been capped
View Details →
ENCP-10
Printing & Vision System (Carton)
A printing and inspection system that prints batch information on cartons and verifies it by vision inspection
View Details →
ENLA-10
Labeler (Carton)
A sealing process that tamper-evidences cartons, protecting the product from external contamination and damage
View Details →
ENCW-50
Checkweigher (Carton)
A checkweighing system that automatically inspects product weight and screens out out-of-spec units
View Details →
ENTB-10
Case Taping Machine (Box)
A sealing machine that automatically tapes the top and bottom of shipping cases to complete the packaging
View Details →
ENCW-30
Checkweigher (Box)
A checkweighing system that automatically inspects product weight and screens out out-of-spec units
View Details →ESU's expert engineers will propose the optimal line solution for your production requirements.
